Zebra DS457 2D USB-kit

Customers rate us with a 9,5

Zebra DS457 2D USB-kit

View everything from the category 1D/2D Barcodescanners

Order options USB-kit RS232-kit Scanner without cable
€ 259,00 € 313,39 Incl. VAT Processing... Add to wish list
Customers rate us with a 9,5
Availabilty: 330 piece(s) Ordered before 16:00, shipped today (Mo-Fr)

Add to favorites

Product description and specifications
Documents
Accessories
Ask a Question
Alternative products
Related products

Product description

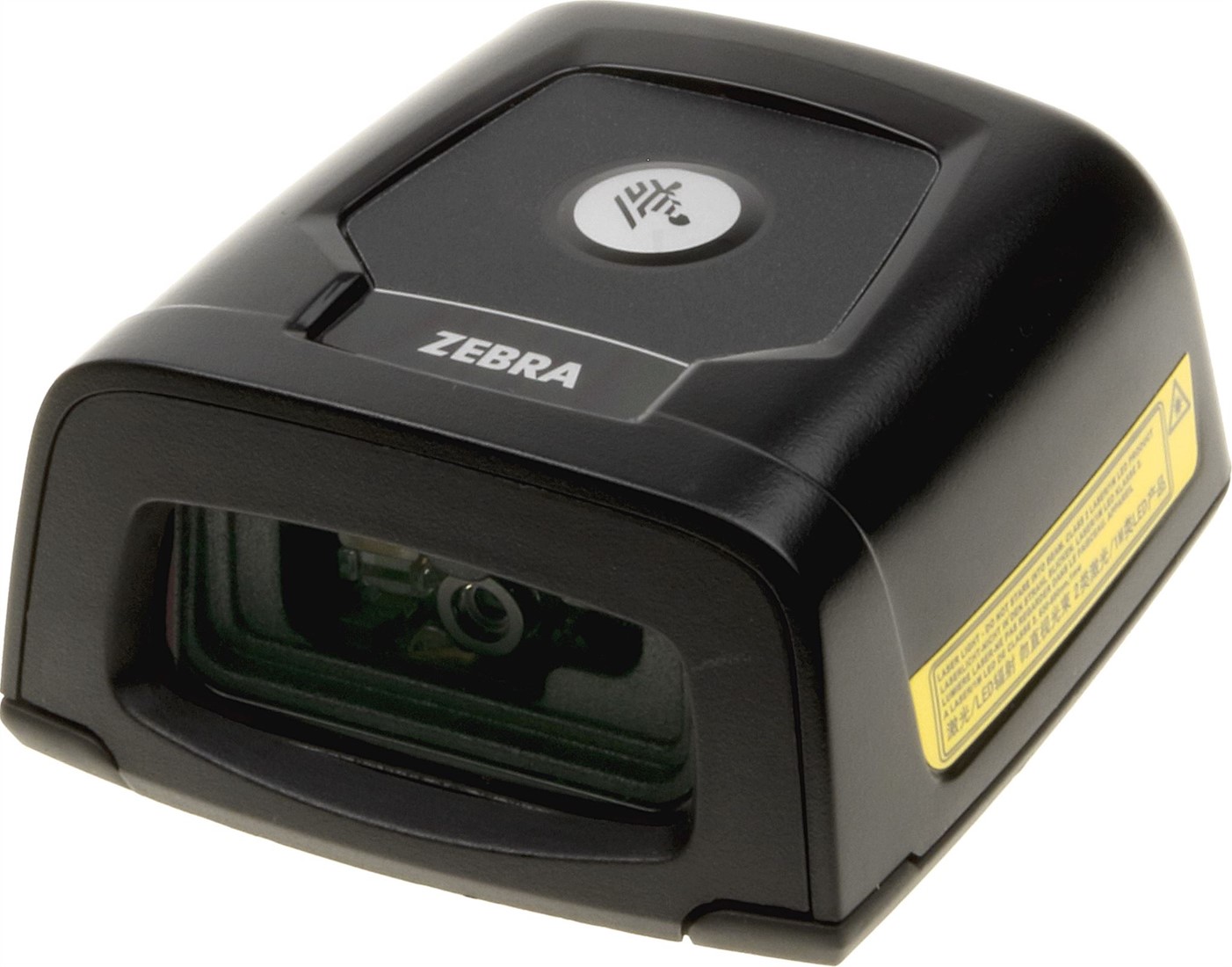

Zebra DS457 2D barcode scanner is intended for fixed installation. The DS457 2D scanners effortlessly read all types of barcodes of paper, labels, tickets, passes, travel documents or screens such as mobile phones.

With the screw holes on the underside of the Zebra DS457 scanners, these can easily be mounted on any location, for example above a conveyor belt, in an information kiosk or above a workbench. Also available is a handsfree stand or mounting bracket (see 'Accessories' below).

Order opties:

USB-kit:	The USB kit includes the Zebra DS457 barcode scanner and a straight USB connection cable. This set is most commonly used when you want to connect the scanner to a PC or laptop. With the USB kit, the scanner receives the power from the USB port to which it is connected.
RS232-kit:	The RS232 kit includes the Zebra DS457 barcode scanner and a straight serial RS-232 connection cable. This set is used for serial communication or when you want to connect the scanner to a PLC or machine. With the RS232 kit, the scanner receives its power from power adapter which is included in the kit.
Scanner without cable:	When you order the Zebra DS457 as a 'Scanner without cable', you will receive the scanner without a connection cable. With this option you can put together your own set or replace a faulty one.

Documents

Datasheet Zebra DS457 2D

Specifications

	Color	Black
Barcode(s) Indicates which barcode(s) you're able to scan. 1D Barcodes are barcode with the vertical lines like the Code-128, Code-39 and EAN-13 and 2D barcodes are the newer square barcodes containing small blocks such as the QR-Code or Datamatrix.	Barcode(s)	1D & 2D
Scan technology Indicates which scanning technology the barcode scanner uses	Scan technology	Imager
Scan pattern Indicates which scan pattern the barcode scanner is using	Scan pattern	Area
Scanning from Indicates if you can scan barcodes from paper, labels and packaging or also from a displays such as computer monitors, tablets and smartphones	Scanning from	Labels Displays
Optics Indicates the scanning range of the barcode scanner	Optics	Standard Range (SR)
Scanning range Indicates the distance at which the barcode scanner can scan a barcode	Scanning range	3 - 41,9 cm
Connectivity Indicates whether the barcode scanner operates wired or wireless	Connectivity	Wired
Interface(s) These interface(s) are supported	Interface(s)	RS-232 USB
EAS Compatible Indicates wether the barcode scanner is EAS compatible or not	EAS Compatible	No
Protection class Indicates the sealing the housing of the barcode scanner provides against dust and water	Protection class	IP54
Application Indicates for which application(s) the product is suitable	Application	Office Store Warehouse Industry Logistics
Includes stand Indicates wether the barcode scanner includes a (hansdfree) stand	Includes stand	No
	In the box	Scanner Connection cable
	Dimensions (WxHxD)	6,2 x 2,92 x 5,8 cm
	Weight	111 g
	Composition of	DS457-SR20004ZZWW CBL-58926-04
	Brand	Zebra
	Category	1D/2D Barcodescanners
	Tags	DS457-SREU20009
	Warranty	3 years
	Product code	DS457-SREU20004
	Vendor Code	DS457-SREU20004
	Unit	piece(s)
